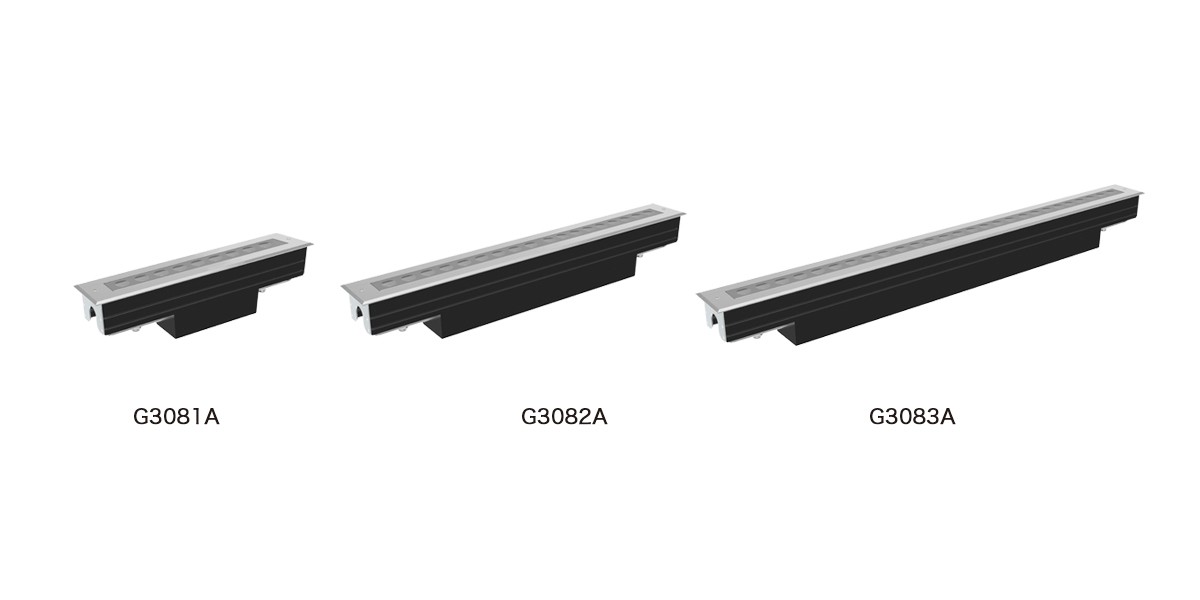

Asymmetric G3081/2/3S6

Waterproof:

1.Anti-negative pressure power cable to prevent water entering into the

luminaire

2.Imported silicon rubber material is adopted for waterproof gasket;

3.Ingress protection IP67.

Configuration:

1.According to the LED heat dissipation performance, the heating is conducted quickly through the luminaire structure to guarantee the LED luminous efficiency and life span;

2.The glass is on the same horizontal level as the cover to avoid dust deposition;

3.6063 aluminium,powder paint with high corrosion resistance,stainless steel surface cover;

4.10mm thickness glass with strong load bearing capacity;

5.Thermal insulation between glass and housing through silicon rubber as gasket to avoid excessive surface temperature of glass.

GB: According to CQC (China Quality Certification Center) and EMC (Electromagnetic Compatibility) standard luminaires are designed strictly.

Luminaires shapeStrip
Glass materialart glass with diamond silver gray color
LED quantity9、18、27
LED color (single color)5000k(WH)、4000k(WN)、2708-2735K、3011-3075K
Power input36V DC
Control
Installation
Cables outlet
Electricity Way直流
Way of connecting wiresParallel power cable,no waterproof connector
Specification of LED170mA
Lamp length*
LED TypeOSRAM
